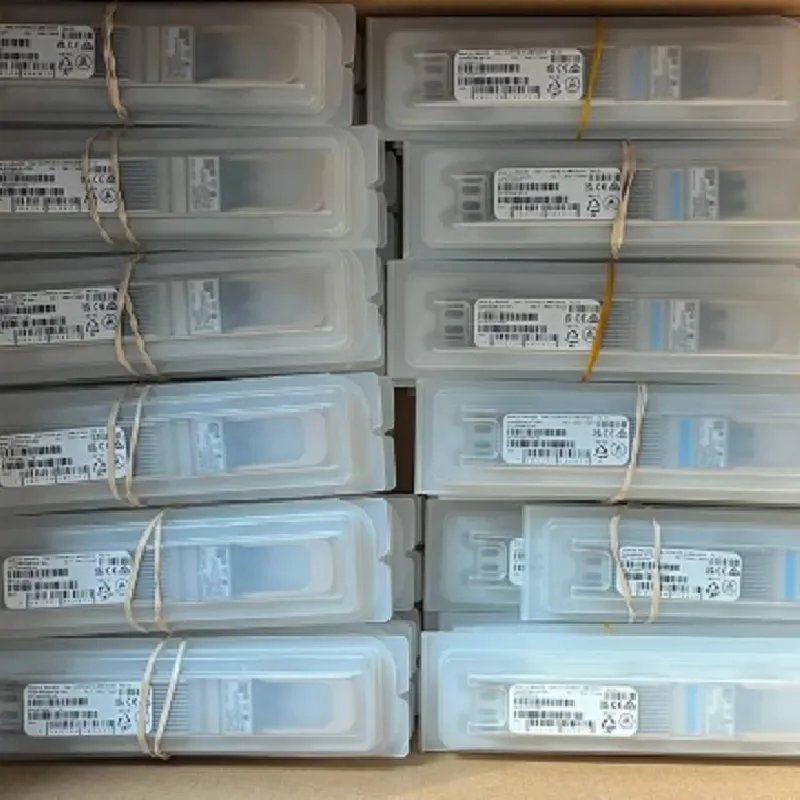

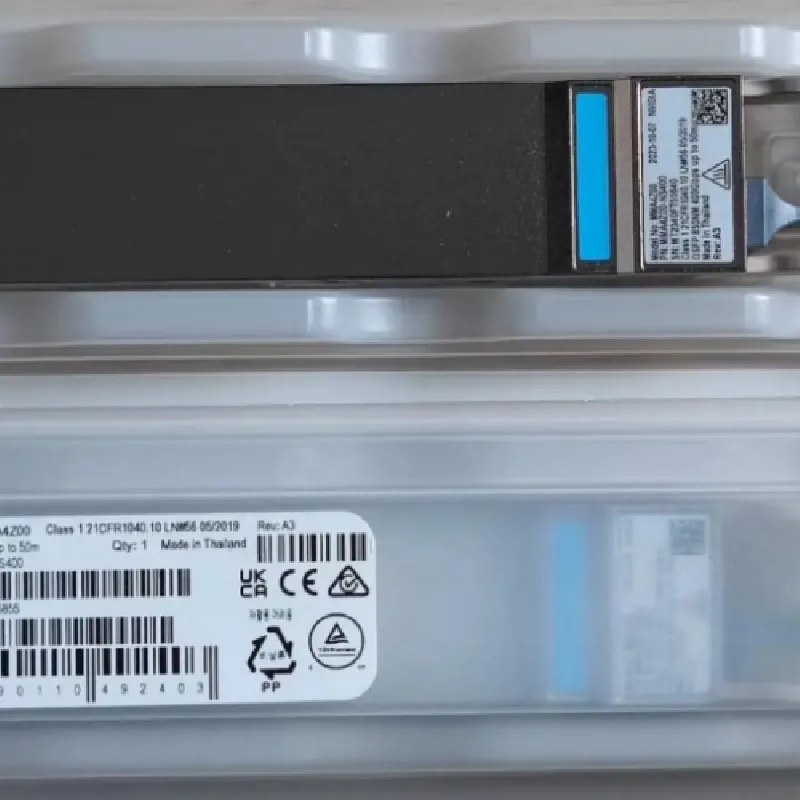

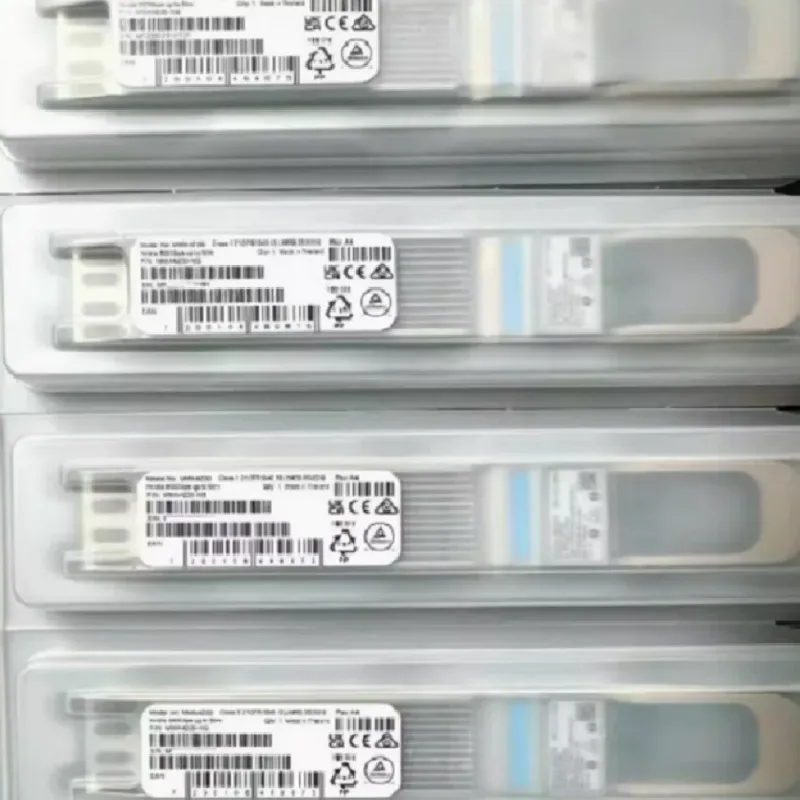

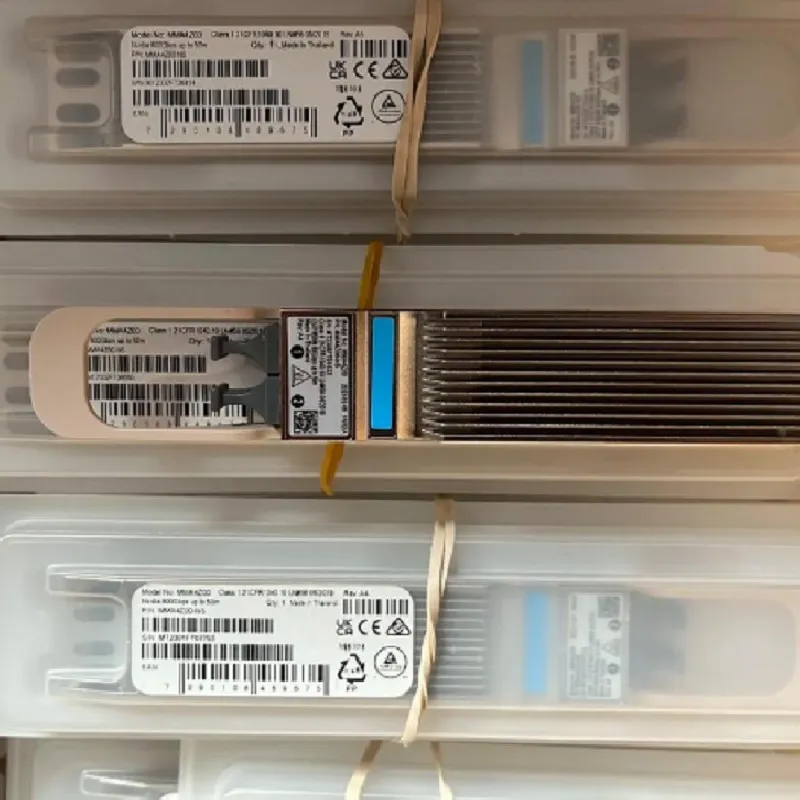

NVIDIA MMA4Z00-NS400 MMA4Z00-NS400-T 400Gb/s Single-port OSFP 400Gb/s Multimode 50m 英偉達光纖�？霻EL:13910098771
Ethernet (ETH) 400Gb/s, Single-port, OSFP, multimode parallel transceiver
The NVIDIA MMA4Z00-NS400-T is an Ethernet (ETH) 400Gb/s, Single-port, OSFP, multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fiber and assumes two optical patch panels in the link. It has identical design and internals as the QSFP112 version, only with different connector shells.
The OSFP shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 connector cage.
When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power.

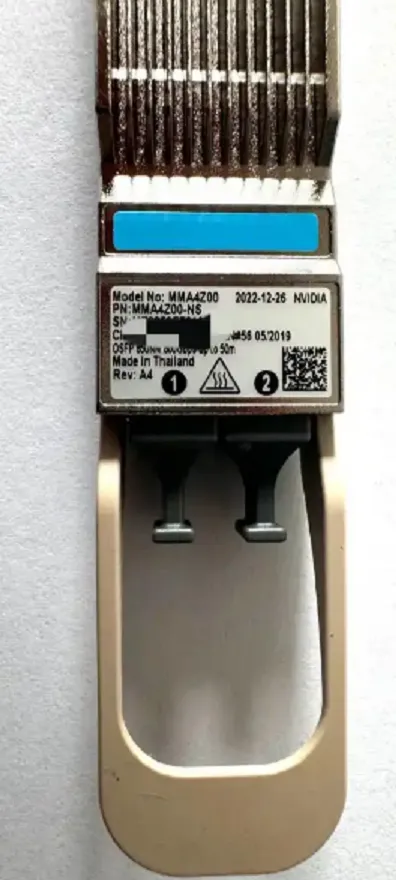

Multimode optics is denoted by a tan-colored pull tab and aqua-colored optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector and is not compatible with Ultra-flat Polished Connectors (UPC) (aqua colored).
NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end systems and customer networking solutions. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Flat Top Transceiver
Key Features
ETH support
400G SR4 multimode
4-channels of 100G-PAM4 electrical and optical modulation
Flat top OSFP connector shell
850nm VCSEL
Maximum reach:
30m using OM3 fiber
50m using OM4 fiber
Single MPO-12/APC optical connector
Operates as a 200Gb/E transceiver with 2-fiber splitter ends
8.5 Watts (max) using 4-channels
5.5 Watts (max) using 2-channels
Single 3.3V power supply
Class 1 laser safety
Hot pluggable, RoHS compliant
compliant
CMIS 4.0 compliant
Case temperature range 0°C to +70°C
Applications
Used in ConnectX-7/OSFP adapters linked to Twin-port transceivers in 2x400G ETH switches
MMA4Z00-NS400 NVIDIA single port Multimode SR4 transceiver, 400Gbps, NDR, OSFP, MPO12 APC, 850nm, up to 50m, flat top InfiniBand ETH 400Gb光纖模塊
NVIDIA MMA4Z00-NS400 是一款 InfiniBand (IB) 和以太網 (ETH) 400Gb/s、單端口、OSFP、SR4 多模并行收發器，使用單個 4 通道 MPO-12/APC 光纖連接器。短距離 4 通道 (SR4) 設計采用 100G-PAM4 調制，使用 OM4 多模光纖的光纖距離為 50 米，并假設鏈路中有兩個光學配線架。它具有與 QSFP112 版本相同的設計和內部結構，只是連接器外殼不同。
收發器固件支持 InfiniBand 和以太網，并根據所連接交換機的協議自動啟用。OSFP 外殼具有平頂，并利用 ConnectX-7 連接器籠上的騎乘散熱器（散熱片）。
當連接到 1:2 分路器時，光纖電纜分路端只有 2 個通道，并且將僅激活 400G 收發器中的 2 個通道，自動創建 200G 速度并降低功耗。
多模光學器件由棕褐色拉片和水綠色光纖表示。MPO-12/APC 光纖連接器上的綠色塑料外殼表示斜角拋光連接器，與超平拋光連接器 (UPC)（水綠色）不兼容。
支持IB 和 ETH
400G SR4 多模
4 通道 100G-PAM4 電光調制
平頂 OSFP 連接器外殼
850納米垂直腔面發射激光器
到達范圍：
使用OM3光纖30m
使用OM4光纖50m
單 MPO-12/APC 光連接器
作為具有 2 光纖分路器端的 200Gb/s NDR200 收發器運行
使用 4 通道時為 9 瓦（）
6.5 瓦（），使用 2 通道
單3.3V供電
1 級激光安全
可熱插拔，符合 RoHS 標準
符合 要求
MSB7800-ES2F network switch
MSB7890-ES2F network switch

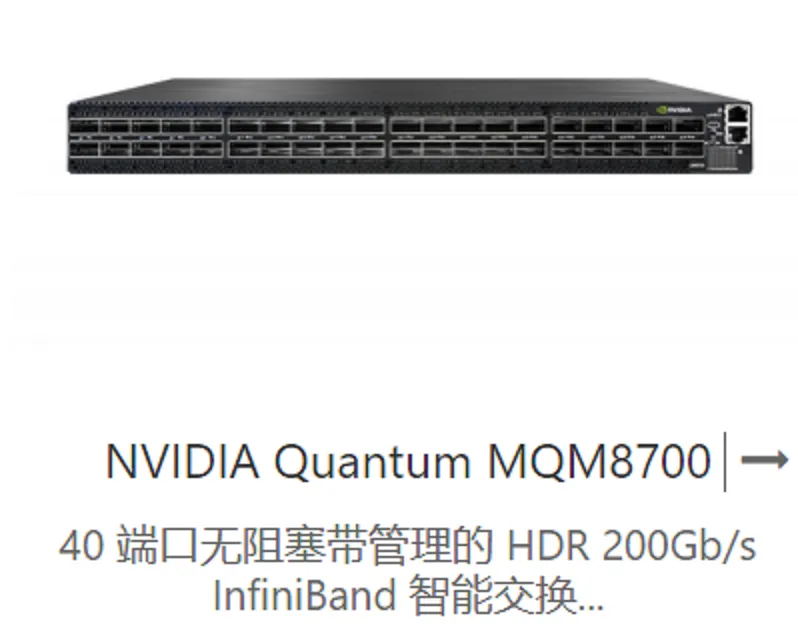

MQM8700-HS2F(920-9B110O0FH-OMD) network switch
MQM8790-HS2F(920-9B110-00FH-0D0) network switch
MCX55***-ECAT network card
MCX556A-ECAT network card
MCX653106A-ECAT-SP network card
MCX65310***-HDAT network card
MCX65310***-HDAT-SP(900-9X6AF-0018-MTO) network card
MCX653106A-HDAT-SP network card
MCX75310AAS-HEAT(9009X766-003N-ST0) network card
MFA1AQ0-E005 AOC cable
MFA1AQ0-E020 AOC cable
MFA1AQ0-E030 AOC cable
MFS1S00-H005V(9809I45D-00H005) AOC cable
MFS1S00-H010E AOC cable
MFS1S00-H010V(9809I45J-00H010) AOC cable
MFS1S00-H015V AOC cable
MFS1S00-H020V(9809I45T-00H020) AOC cable
MFS1S00-H030V(9809I440-00H030) AOC cable
MFS1S50-H003V AOC cable
MFS1S50-H010E AOC cable
MFS1S50-H010V AOC cable
MFS1S50-H015E AOC cable
MFS1S50-H020V AOC cable
MFS1S50-H030V AOC cable
MCP7H50-H002R26
MCP1650-H002E26 AOC cable
MCP1600-E002E30 AOC cable
MCP1600-E003E26 AOC cable
